How to assemble a hair dryer tube
Release time:
2023/10/10
Assembling hair dryer tubes

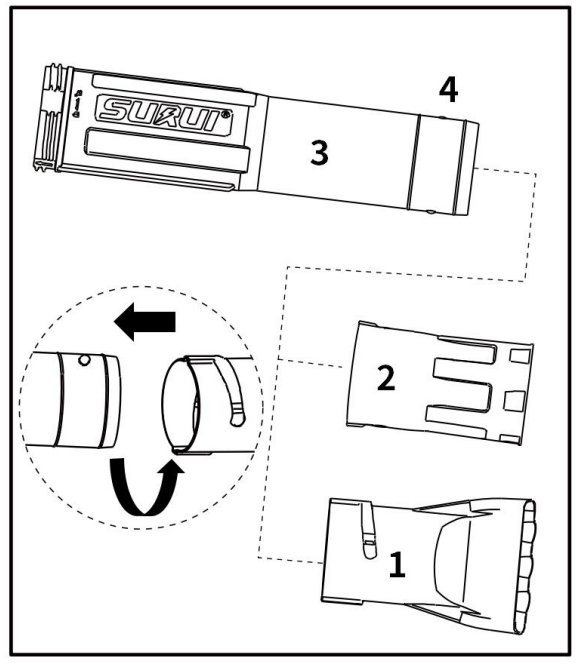

◆ Align the protrusion (4) on the flat blowing head (1) with the protrusion on the telescopic air duct (3), press and rotate.
◆ Alternatively, install a siphon type air head (2), align the protrusion of the air head with the protrusion on the telescopic air duct (3), and press firmly to make the protrusion (4) fit into the groove.
Notice

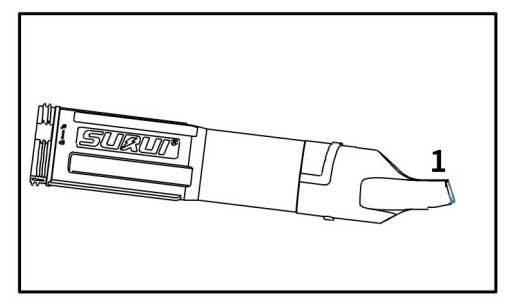

After the installation of the flat blowing head (1), the blowing direction is upward.
◆ Connect the locking nut (6) on the rotating connecting air duct (7) to the telescopic air duct (3).
◆ Be careful not to miss the middle clip (5).

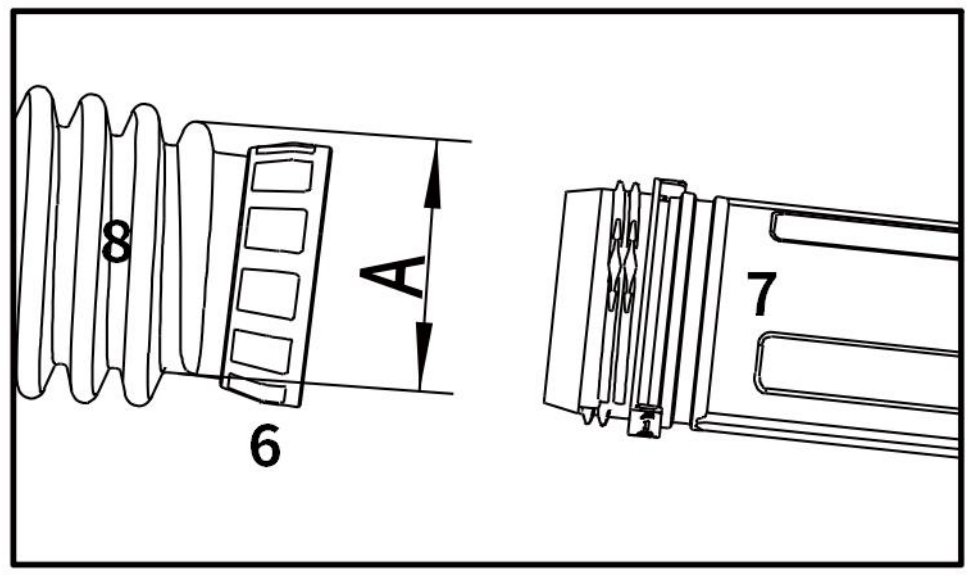

◆ Connect the locking nut (6) on the rotating corrugated pipe (8) to the connecting fan pipe (7).

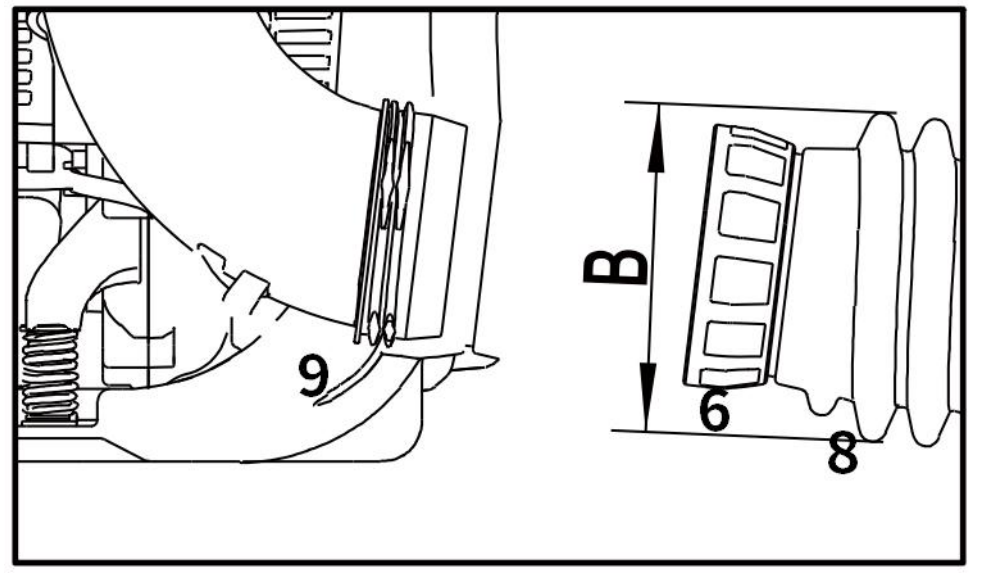

◆ Connect the locking nut (6) on the rotating bellows (8) to the fan elbow (9).
Warn
When installing the corrugated pipe (8), pay attention to the small diameter of pipe A and the large diameter of pipe B.
◆ Rotate the quick lock handle (1) to remove the handle.
◆ Remove the handle fixing sleeve (2) and install it on the connecting air duct (7), with the handle combination (3) passing through the fixing sleeve handle (2).
◆ Rotate the quick lock handle (1) to secure the component to the connecting pipe.
Notice
When installing, the handle should face outward and be marked as facing forward.
After installation, the threaded pipe (2) should be locked into the groove of the fan elbow (1).
◆ When operating the left handle (1), the installation method of the blower pipe is the same.
